Overview
Felco Mini Ex Wheel Compactors have a specially designed wheel assembly to ensure optimal compaction, while featuring greaseable flange bearings instead of our sealed journal bearing to reduce weight for use with mini excavators.

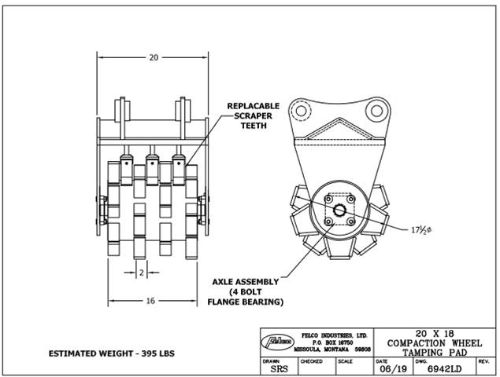

TAMPING PAD STYLE WHEEL COMPACTOR

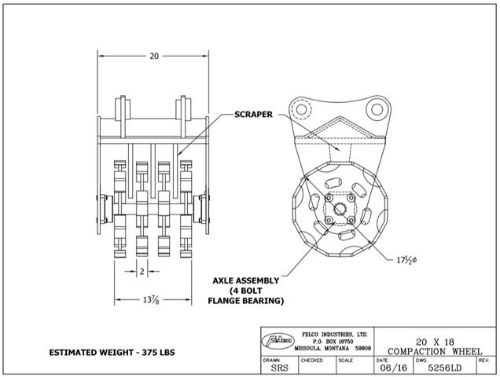

SEGMENTED STYLE WHEEL COMPACTOR
Mini Ex Wheel Compactors are a great solution for compacting on tight repair jobs when you need the extra range of a stand-alone wheel. Replaceable scraper teeth on the Tamping Pad Wheels, or dedicated scrapers on the Segmented Wheels, keep material from building between the compaction bumps / wheels. To replace the flange bearings, just unbolt the wheel from the frame.
Specifications
Tamping Pad |
12 x 18 |
325 |
FLG |
$4,593 |
Tamping Pad |
16 x 18 |
375 |
FLG |
$4,726 |
Tamping Pad |
18 x 18 |
425 |
FLG |
$4,940 |
Tamping Pad |
20 x 18 |
475 |
FLG |
$5,121 |
Tamping Pad |
24 x 18 |
575 |
FLG |
$5,511 |
Segmented |
12 x 18 |
237 |
FLG |
$4,593 |
Segmented |
16 x 18 |
245 |
FLG |
$4,726 |
Segmented |
18 x 18 |
310 |
FLG |
$4,940 |
Segmented |
20 x 18 |
375 |
FLG |
$5,121 |
Segmented |
24 x 18 |
498 |
FLG |
$5,511 |
Standard Features:
Fixed Ear Assembly to match OEM specs for backhoe or excavator
FLG – Greaseable Flange Bearings
Options Include:
Linkage Pins
Dedicated Leveling Blades
NOTE:
We currently have a steel surcharge in effect. We are assessing $0.40 / lb. based on the estimated attachment weight.
Felco recommends quoting our products through your preferred excavator dealership. Typically dealers can offer pricing incentives on our products. Please have your sales rep contact us for a dealer quote.
Options
Linkage Pins
可更换刮刀牙齿为捣固P /适配器ad Wheel
Worn scraper teeth are easy to remove and replace. Scraper teeth keep the wheel clean and will improve the performance of your compaction attachment.

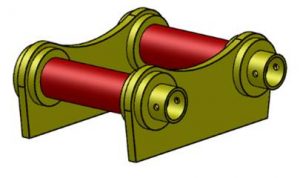

Replacement Ears
Felco can send a set of replacement pin-on ears for your current Felco Mini EX Wheel Compactor, to use your attachment on a different, similar class excavator.
Please provide the serial # on the Wheel Compactor which is located between the current set of ears, and the Make / Model of the excavator that you want the new ears to mount on.
To confirm ear dimensions, please click on thisEar Dimensions Confirmation Sheet.

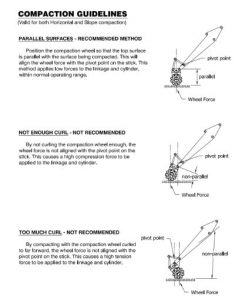

How To Use
Videos
