Wheel Compactors

Overview

Felco Wheel Compactors are the premier wheel option on the market. Within the rigid exterior frame, Felco uses our proven Sealed Journal Bearing System so the strength of the axle assembly, combined with its maintenance-free design (no greasing) provides superior performance and less downtime due to its ability to withstand heavy use.

Excavator operators use Felco Wheel Compactors typically when the extra extension range of the wheel is preferable, and contractors consistently report achieving 90% + compaction in most soil types throughout the U.S. and Canada.

Bi-directional scraper teeth assemblies remove excess material between the rows of bumps, and the replaceable X156 dirt teeth are a standard size and available from most dealers.

Felco’s Sealed Journal Bearing System requires NO DAILY MAINTENANCE and is supported by an industry best FIVE YEAR LIMITED WARRANTY.

Bolt-On Ear Assemblies are standard with each wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.

Machine Weight
(LBS)
Standard Size
(W” x D”)
Est. Weight
(LBS)
Sealed Journal
Bearing
17,000 – 32,000
18″ x 27″ 750 SJB-I
24″ x 27″ 825 SJB-I
30″ x 27″ 1,000 SJB-F
32,000 – 58,000
18″ x 31″ 1,100 SJB-E
24″ x 31″ 1,400 SJB-E
30″ x 31″ 1,800 SJB-E
36″ x 31″ 2,200 SJB-H
58,000 & Up
18″ x 41″ 1,750 SJB-E
24″ x 41″ 1,950 SJB-E
30″ x 41″ 2,200 SJB-E
36″ x 41″ 2,575 SJB-H
42″ x 41″ 3,000 SJB-H
48″ x 41″ 3,500 SJB-H
60″ x 41″ 4,626 SJB-H

BOLT-ON EAR ASSEMBLY to match OEM specs for excavator is standard features.
Replaceable Scraper Teeth
Five Year Limited Warranty

Linkage Pins

Available from 40mm to 130mm diameters

linkage pins

Bolt-On Leveling Blades

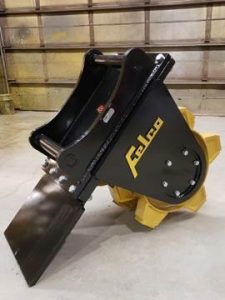

Felco Bolt-On Leveling blades can be mount on either side of the ear assembly, depending on how an operator prefers to push/pull material into the trench.

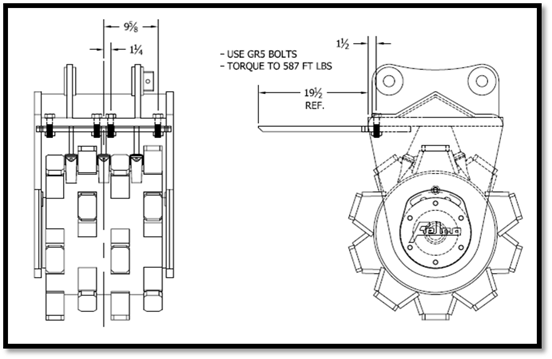

Bolt-on leveling bladeleveling blade diagram

Replaceable Scraper Teeth / Adapters

Worn scraper teeth are easy to remove and replace. Scraper teeth keep the wheel clean and will improve the performance of your compaction attachment.

可更换刮刀牙齿为捣固P /适配器ad Wheel

Bolt-On Ear Assemblies

Bolt-On Ear Assemblies are standard with each full size wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.

Please provide the serial # on the Wheel Compactor which is located between the current set of ears, and the Make / Model of the excavator that you want the new ears to mount on.

To confirm ear dimensions, please click on thisEar Dimensions Confirmation Sheet.

BOLT-ON Replacement Ear Assemblies

For sizing and pricing questions, please call our Parts Department at800-221-5427, then press 1.

A TILTROTATOR is a hydraulic coupler that allows an excavator operator to rotate an attachment a full 360 degrees, as well as tilt the attachment up to 45 degrees side-to-side. It has expanded the ways an excavator can be used on a job site.

越来越Felco行业是我们Felc建筑o Wheel Compactors with adapters based on standardized sizing or Symmetrical Quick Couplers for Excavators as documented byMaskinleverantörerna, a trade association for Sweden’s established suppliers of mobile work machines. Clickherefor more details.

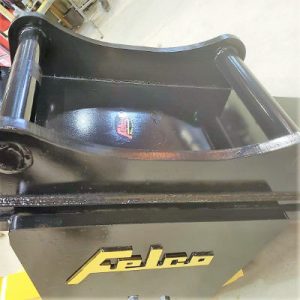

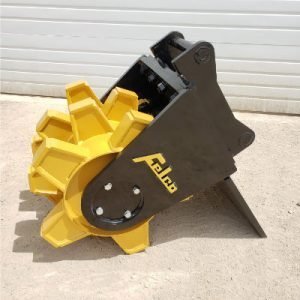

Felco wheel compactor from the sideTiltrotator on a wheel compactor by Felco

To translate, the tiltrotator manufacturers, including three highly recognized companies shown below, agreed upon a standardized set of measurements for their adapters. This makes it very convenient for Felco to build to these specs once we know the adapter class.

Rototilt LogoSteelwrist LogoEngcon logo

Here are a few examples of Felco Wheel Compactors with Tiltrotator adapters:

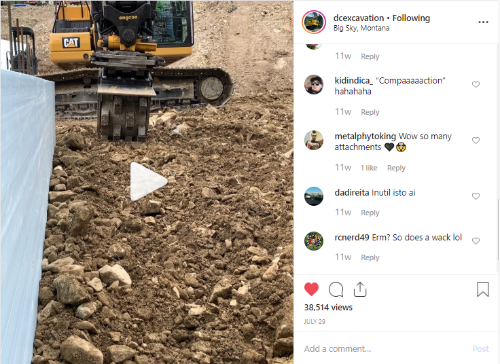

This video courtesy ofDC Excavation, Bozeman, MTusing a Felco 24” wide x 31” Diameter Tamping Pad Wheel Compactor, with a bolt-on S70 adapter, to use with an Engcon Tiltrotator Coupler on his CAT 323 Excavator.

DC Excavation IG Post

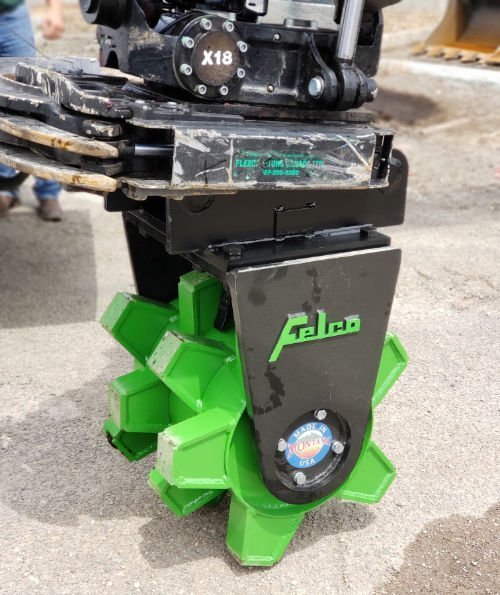

Here is a photo of a freshly delivered Felco 24” wide x 27” Diameter Tamping Pad Wheel Compactor, with a bolt-on S60 adapter, to use with a SteelWrist X18 Tiltrotator Coupler on a John Deere 135G Excavator. This unit purchased byWestern Excavating in Missoula, MT.

Felco Wheel Compactor Tiltrotators

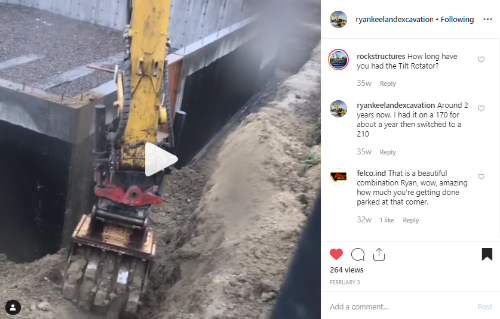

This video below is courtesy of Ryan Keeland Excavation in Billings, MT, using a Felco 30” wide x 31” Diameter Tamping Pad Wheel Compactor, with a bolt-on S70 adapter, to use with a RotoTilt Tiltrotator Coupler on his Komatsu PC210 Excavator.

Ryan Keeland IG Post

To learn more about building a Felco Wheel Compactor for your excavator with a Tiltrotator Coupler, please call us at800-221-5427or clickRequest a Quoteand indicate “Tiltrotator” in the coupler type section.
